Akuafoil
Radiance never seen before – dazzle you can afford! Akuafoil gives
you a wide range of CMYK colors with a sparkling foil finish and an ideal reflection that is priced to give you a true competitive
advantage. State-of-the-art features allow you to produce large solid areas as well as reversed out areas of foil. You can produce
foiled half tones, gradients and have multiple colors in foil on the same design. The design possibilities are limited only by your
imagination, giving you an exquisite edge.
With Akuafoil, you can turn a wide range of CMYK colors into multi-colored foils. Akuafoil uses a special processed foil system that
is applied under a four color process to create an array of foil colors. It's simple, affordable, and makes your prints stand out from
the crowd.
Akuafoil set up
For an Akuafoil job, you must include an Akuafoil mask file along with your CMYK file. The mask file indicates where the Akuafoil
will be applied. The file setup is the same as Spot UV. Use 100% K where Akuafoil needs to be applied and white where the Akuafoil
is not applied.

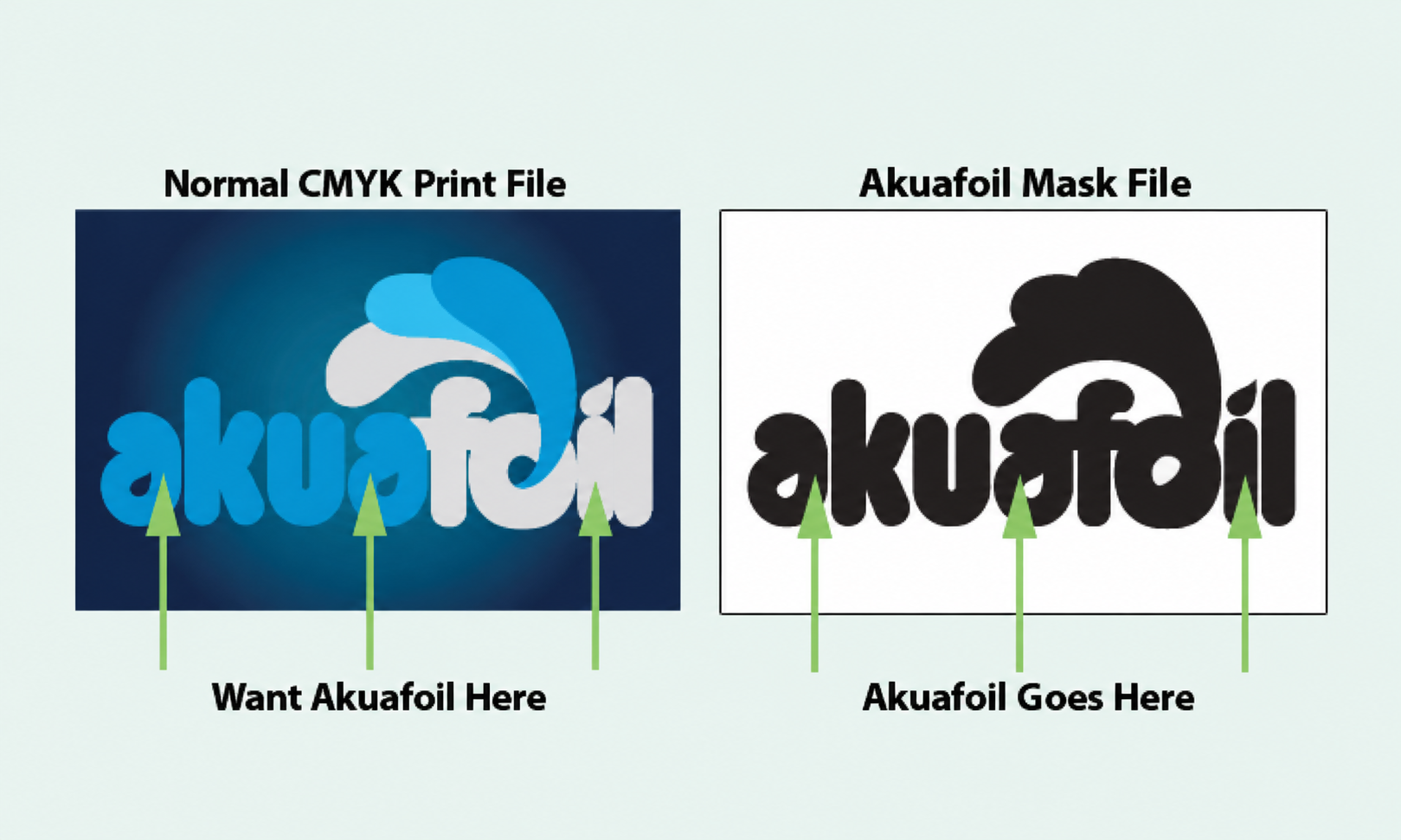

As shown above, the file on the left is the normal CMYK print file. If you want the logo to be Akuafoil, then your Akuafoil mask file
should look like the file on the right. The white indicates no Akuafoil and black 100% K indicates where the Akuafoil will be applied.
When uploading, please remember to upload separate files.
Here are few things to keep in mind when creating your Akuafoil artwork:
Make sure the mask and CMYK print file are aligned. They should match exactly in size and position.
Akuafoil works best on lighter colors. The darker the CMYK color, the less vibrant the Akuafoil effect.
Do not use very thin or small text and artwork with Akuafoil. Use San Serif fonts above 12 point for best results.
If you have Akuafoil applied to a white area, it will have a plain silver Akuafoil look.
For better quality we recommend creating mask files in vector based programs such as Illustrator or CorelDRAW.
If you would like plain silver Akuafoil to print, make sure to have at least 15% K in the CMYK print file area in order to obtain
the highest quality silver Akuafoil effect.
